CSL1601
CSL1601 is designed for data storing from multiple MODBUS clients and ADC Channels, and sending them to a remote server with the help of built in GSM modem or via LAN connectivity. User can easily configure different parameter settings through Ethernet configuration GUI or RS232 port or even sending dedicated SMS commands to the Terminal.
*SD Card interface
*USB Port
*LAN interface
*Built-in GSM modem for GPRS communication
*Built –in GPS receiver
* RS232 ports
*1 RS485 Port
*SDI12 interface with switchable sensor power
*4Digital outputs
*6Channels analog inputs
*32Channels digital inputs
*Quadrature inputs for rotary encoders
*Firmware upgrade using USB drive
*Data copy to LAN
Data Logger

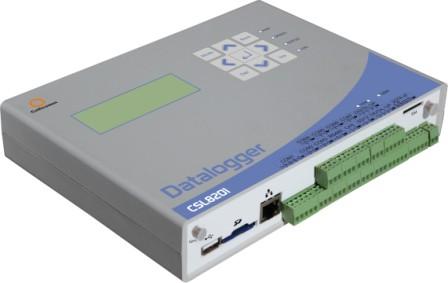

Data LoggerCSL 8201 is general purpose datalogger with features and interfaces suitable for any datalogging applications. It can be used for stand-alone applications or for GSM/GPRS/Web based data acquisition applications.
*SD Card interface
*USB Port
*LAN interface
*Built-in GSM modem for GPRS communication
*Built –in GPS receiver
*4Line information display
*User friendly keypad interface
*3 RS232 ports
*4Ports RS232 expansion card (optional)
*1 RS485 Port
*CAN interface
*SDI12 interface with switchable sensor power
*4Digital outputs
*20Channels analog inputs
*16Channels digital inputs
*Quadrature inputs for rotary encoders
*Firmware upgrade using USB drive
*Data copy to USB drive

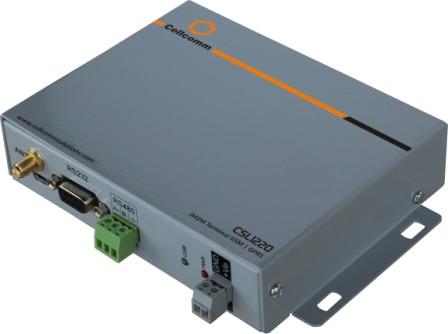

iM2M terminal
The iM2M terminal (Intelligent Machine to Machine Terminal) is an intelligent and modern device that can be integrated with a wide variety of devices. This allows your machines to communicate with the your IT back-end system or mobile phone remotely. This small and efficient package is loaded with sophisticated M2M technology. It provides versatile interfaces and advanced functions which can be integrated as a part of your application devices.
*GSM/GPRS Band - Quad-Band GSM 850/900/1800/ 1900 MHz
*GPRS Class - GPRS multi-slot class 12
*SMS - TEXT and PDU mode
*RF Output power
*Flash Memory 8MB - RAM - 1.7MB
*SIM - Supported SIM cards: 3V, 1.8V
*Security authentication by software
*CPIN for SIM protection (Optional)
*Internet services - TCP, HTTP, FTP, SMTP
*Clock - Built-in Real time clock with battery backup
*COM-1 - RS232 for Serial data acquisition
*COM-2 - RS485 , 2wire RS485 .
*USB - For Debugging
*Optional – Dual SIM, LAN
